About us
amixon® high precision mixers, dryers and granulators are optimized for the processing of powdery products. Some of the benefits include ideal mixing qualities and excellent hygienic standards. The individual fabricated devices find application in many different branches and can be tested in our worldwide test centers. The production of our machines takes place exclusively in the amixon® factory in Paderborn, Germany.
Address
Halberstaedter Str. 55
33106 Paderborn
Germany
E-mail: sales@amixon.com
Phone: +49 5251 6888880
Internet: www.amixon.com
4445 Malone Road
38118 Memphis, TN
United States
E-mail: Mike.Miller@azo.com
Phone: +1 901 355 1154
Internet: www.azo-inc.com/
Contact person:
Mike Miller
Director of Sales & Marketing AZO Inc.
E-mail: Mike.Miller@azo.com
Phone: +1 901-355-1154
Products & Services
High-Precision Mixing and Drying Equipment for Advanced Manufacturing — Engineered by amixon®
amixon® specializes in the design and manufacturing of precision mixers, vacuum dryers, and process reactors for a wide range of industries — including food, pharmaceuticals, chemicals, and specialty materials. All equipment is engineered and built in-house in Paderborn, Germany, with a strong focus on quality, hygiene, and process performance.
One rapidly growing area of application is lithium-ion battery production. amixon® systems are ideal for processing and drying high-purity lithium salts such as lithium carbonate, hydroxide, and chloride. Key benefits include:
Airtight design for maximum product purity and environmental protection
Ultra-gentle mixing with low shear and virtually no particle degradation
Fast, energy-efficient vacuum drying with optional integrated cooling
Complete discharge and containment-ready connections for safe, clean handling
Multi-step processing in a single unit — mixing, drying, cooling, and more
amixon® systems also support battery recycling processes by enabling the controlled evaporation of electrolytes and recovery of active materials under vacuum. Reactor operation up to 350 °C allows for the separation of binders like PVDF, followed by efficient homogenization of recovered solids.
Process trials in our state-of-the-art test center allow you to validate results and scale up with confidence.

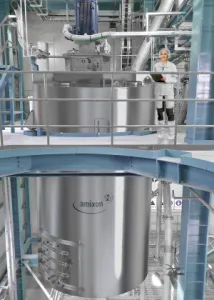

Gyraton® mixer for large quantities of bulk goods
This large-volume mixer is a new development. The Gyraton® mixer homogenizes large quantities - up to 70 m³ - of bulk material precisely, gently and economically. The mixing process is particularly gentle at minimum speed. This preserves energy resources as well as the particle structure of the bulk goods. Precise mixing is ensured for any type of bulk material: dry, moist or wet, free-flowing or poor-flowing, pasty, time-setting, ...
A visit to our test center in Paderborn and the performance of trials with our Gyraton® test mixer ensures a high gain in information and knowledge.

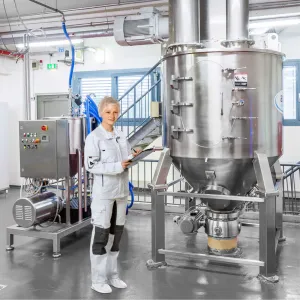

amixon® Conical powder mixers with great discharge ability
Conical mixer type AM
A distinctive property of the amixon® conical mixers is their very high degree of residue emptying. Due to the conical design, the bulk materials are discharged - completely in the case of free-flowing materials - without segregation with the mixing tool rotating slowly.
The major success factors are ideal mixing qualities with different filling levels from 5 – 100%, particularly high degrees of residue emptying up to 99.99% and exemplary inspection possibilities with the help of CleverCut® inspection doors.
amixon® mixers conform to the specifications of the EHEDG and the FDA and thus meet the highest requirements for the hygienic preparation of dietary foodstuffs, baby food and pharmaceuticals. Moreover, they meet all requirements contained in the GMP standard.
Find out more about the conical mixer type AM!

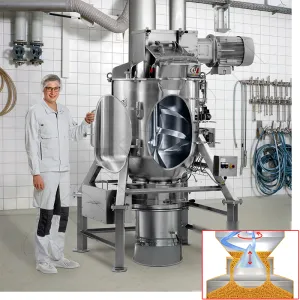

KoneSlid® mixer KS
amixon® has developed an interesting innovation: a single-shaft powder mixing system with comparatively small dimensions. This precision powder mixer is characterised by particularly short mixing and discharging times, amongst other things. It is thus capable of processing large product quantities in a short cycle time.
Ideal mixing qualities and excellent particle protection are achieved in a new way. The mixing container consists of a silo-like container in whose centre a large cone is inserted at the bottom. The powder mixer has a smooth, streamlined design and supports the flow process of the mixtures. Helical mixing tools convey the goods upwards in a spiral-like motion. This process takes place along the wall of the container.
Having arrived at the top, the goods slide downwards and are directed to the outside once again by the cone. The homogenisation process takes place in the marginal area between the upward screwing and the downward movement. This process is gentle and effective.
After approximately 20 to 30 revolutions an ideal mixing quality is obtained that cannot be further improved in practice. The displacer then lowers itself by a few centimetres, so that the emptying takes place quickly and without residues. The mixer usually discharges into containers, big bags or the storage tanks of a filling machine. If the discharged mixture would land in the middle of the collecting container, a cone of material would form, leading to two disadvantages. On the one hand, the entire intake capacity cannot be used and on the other, bulk material slopes can cause segregation effects. The mixtures are discharged from the KoneSlid® mixer completely and without segregation.
amixon® has test mixers in the most diverse sizes for process trials available. Good results are assured in advance.

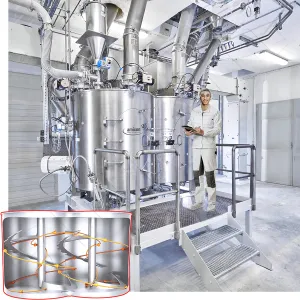

amixon® Vertical twin-shaft mixer HM
Ideal mixing qualities and excellent particle protection are guaranteed in the amixon® twin-shaft mixer. The mixer creates a three-dimensional product flow which guarantees optimum mixing quality and gentle particle handling. The mixing container consists of two cylinders that merge into each other. In their centre there are two helical mixing tools rotating in the same direction. A fifth of the entire mixing material is redistributed with one revolution of the mixing tools. The gentle upward transport of the mixture takes place by means of the helical blade mixing tools, while the downward flow takes place naturally due to the effect of gravity. One and the same mixer can homogenize extremely gently, but also deagglomerate intensively.
The mixer can discharge free-flowing bulk materials almost completely up to 99,99% by means of ComDisc®. In this way, the operator makes a valuable contribution to resource conservation.
amixon® apparatuses are manufactured in compliance with EHEDG, GMP and FDA regulations. Made in Germany!

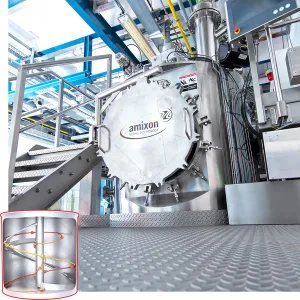

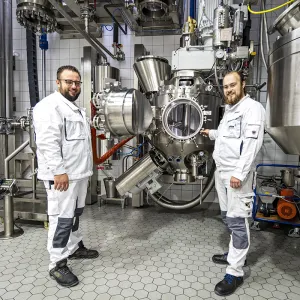

Vacuum mixing dryers AMT and VMT
amixon® vacuum mixer-dryers and reactors offer key advantages for the safe, efficient, and gentle processing of battery-grade materials — especially for drying high-purity lithium salts and recycled active materials.
The VMT is a vertical 3-in-1 system that functions as a mixer, dryer, and reactor. Its design ensures excellent heat transfer, minimal product buildup, and uniform treatment of powders, pastes, or suspensions — making it ideal for sensitive lithium compounds. The AMT, equipped with a conical vessel, delivers fast, uniform drying and rapid, residue-free discharge — reducing cycle times and maximizing productivity.
Both units feature a spiral mixing blade and are fully vacuum- and pressure-rated with complete temperature control. Their multifunctionality supports combined mixing, drying, reacting, and cooling operations — essential for battery applications requiring precise thermal control.
The AMT’s self-emptying design minimizes downtime between batches, while the VMT provides unmatched process flexibility and scalability. Both systems deliver consistent, high-quality results — whether you’re producing cathode-grade lithium salts or processing recovered materials in battery recycling.
amixon® equipment is built to meet the demands of modern battery manufacturing — delivering performance, purity, and process efficiency with every batch.
Both dryer types can be tested in our test center.
For more details, visit our website:

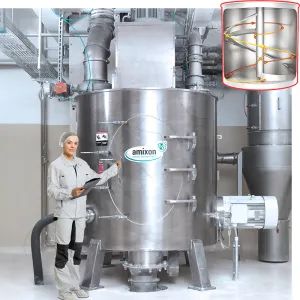

Vertical single-shaft mixer VM
This industrial mixer guarantees very good mixing results and complete discharge. It can be used for dry powder and wet suspensions. The spiral mixing blade inside the ribbon blender initiates a three-dimensional flow of the mixing goods; creating a helical upward movement on the periphery and downward flow in the center. If the mixing process requires deagglomeration, high speed cutting rotors can be installed.
The vertical mixer can be designed for compliance with FDA and 3-A Sanitary Standards to be used as a sterile mixer and reactor which also meets EHEDG requirements.
